NCERT Solutions for Class 8 Maths Chapter 4 Practical Geometry Ex 4.4
Ex 4.4 Class 8 Maths Question 1.
Construct the following quadrilaterals:
(i) Quadrilateral DEAR
DE = 4 cm, EA = 5 cm, AR = 4.5 cm, ∠E = 60°, ∠A = 90°
(ii) Quadrilateral TRUETR = 3.5 cm, RU = 3 cm, UE = 4.5 cm, ∠R = 75°, ∠U = 120°
Step I: Draw DE = 4 cm.
Step II: Draw an angle of 60° at E.
Step III: Draw an arc with centre E and radius 5 cm to meet the angle line at A.
Step IV: Draw an angle of 90° at A and cut AR = 4.5 cm.
Step V: Join DR.
Thus, DEAR is the required quadrilateral.

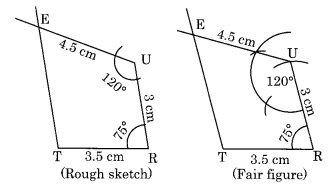

Step I: Draw TR = 3.5 cm
Step II: Draw an angle of 75° at R and cut RU = 3 cm.
Step III: Draw an angle of 120° at U and cut UE = 4.5 cm.
Step IV: Join TE.
Thus, TRUE is the required quadrilateral.
